Metal Seat Ductile Iron Gate Valve-DIN F5

Metal seated ductile iron gate valves Gate valves made from ductile iron are widely employed in various industrial applications, including water supply systems, mining operations, and sewage treatment plants. Compared to cast iron gate valves, they exhibit superior resistance against corrosion and are less prone to brittleness, which reduces the chances of cracking or breakage under stress. Consequently, ductile iron gate valves have emerged as a preferred choice for industries that require reliable and long-lasting valves for their operations.

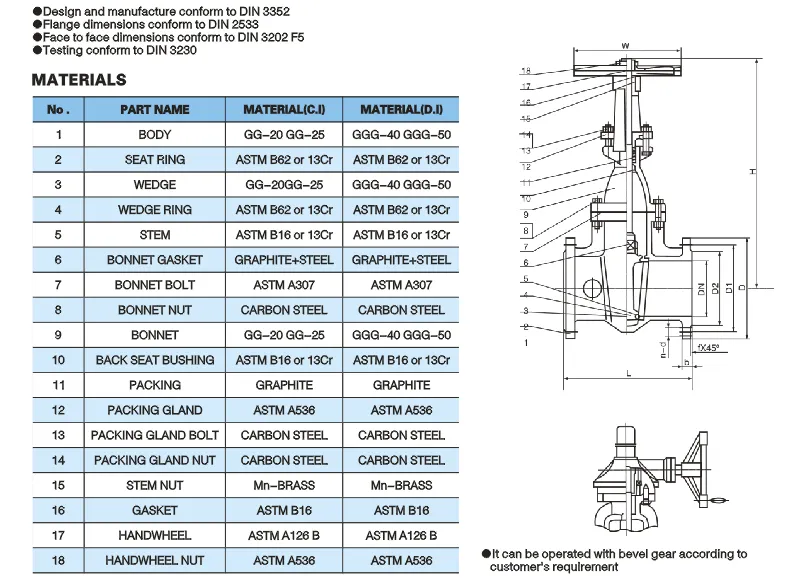

Technical requirements:

1) Design and manufacture as per DIN 3352

2) Test and inspection as per DIN 3230

3) Face to face is according to DIN 3202 F5

4) Flanged end as per DIN2501

Specifications:

 Diameter: DN40 to DN600

 Pressure : PN10 and PN16

 Features: Our gate valve is made of ductile iron GGG50 and features a bolted bonnet design. The stem can be either non-rising or rising, depending on your preference. With a ductile iron disc, you have the option of a brass, bronze, or stainless steel seat ring for a secure and long-lasting seal. The stem material is available in stainless steel or brass, offering durability and reliability. Furthermore, you can choose between an epoxy-coated or epoxy-painted finish for added protection.

Body Material: Ductile iron GGG50

Manual Operation: hand wheel and gear operated
