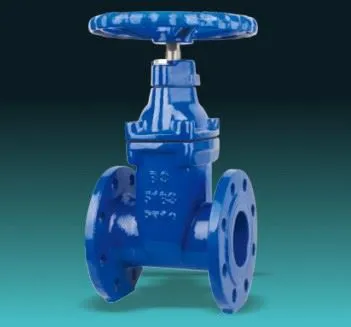

BS5163 Ductile Iron Metal Seated Gate Valve

The BS5163 ductile iron metal seated gate valvesValves play a crucial role in a wide range of applications, including municipal water systems, oil and gas pipelines, and various industrial processes. These essential components are specifically designed to regulate the flow of fluids within pipes and ductwork. With their exceptional strength, ductility, and toughness, they are particularly well-suited for use in demanding environments. The valves' unique design ensures not only smooth operation but also reliable performance, contributing to the overall effectiveness of fluid control systems.

Standard compliance:
1) Design and manufacture: BS5163
2) Test and inspection: BS6755
3) Face to face dimensions: BS5163
4) Flanged end: BS4504 PN10/ PN16

Specifications:
1) Size:  DN50 to DN600
2) Working Pressure: PN10, PN16
This valve comes with various features that make it a reliable choice for different applications. For instance, it boasts a metal seated construction made from brass, bronze, and stainless steel materials. Additionally, it has a bolted bonnet and can come with a non-rising or rising stem option. All these features work together to enhance the valve's durability, efficiency, and overall performance.
The body and bonnet of the valve are made of ductile iron, while the wedge is composed of ductile iron with a combination of brass, bronze, and 13CR sealing. The stem of the valve can be either stainless steel or 13CR.
5) Operation: Hand Wheel or Gear Box
