Cast Iron and Ductile Iron Foot Valve

A foot valve is a specialized type of check valve that has a filter securely attached to its open end. It is typically placed either at the bottom of a pipeline or near a pump. Foot valves are particularly useful in maintaining the pump's priming and preventing fluid backflow, making them the perfect choice for various applications such as wells, ponds, and pools. Due to the larger flow area of the foot valve in comparison to the pipe size, the head loss is minimal. These unique valves ensure the pump remains primed, enabling the liquid to flow in while preventing it from flowing back out. However, it is essential to note that the screens covering the valve openings can become clogged over time, especially when used in ponds and wells. Regularly inspecting and cleaning these valves is crucial to achieving optimal performance.

Design and manufacture: ISO standard

Test and inspection: API598

Face to face dimensions: Manufacturer’s standard

The common flanged end standards used in the industry include ANSI B16.5, DIN2501, DIN2533, BS4504, and JIS2212. These standards provide specifications for flanged connections, ensuring compatibility and interchangeability between different components in various systems. The ANSI B16.5, DIN2501, DIN2533, BS4504, and JIS2212 flange standards are widely recognized and implemented worldwide. By adhering to these standards, manufacturers and engineers can ensure the proper fit, alignment, and function of flanged connections in diverse applications. Therefore, it is crucial to consider these flange standards when designing, installing, or repairing systems that require flanged end connections.

·Size Range: 1-1/2” to 12” (DN40 to DN300)

·Pressure Rating: 125LB,150LB, PN10, PN16

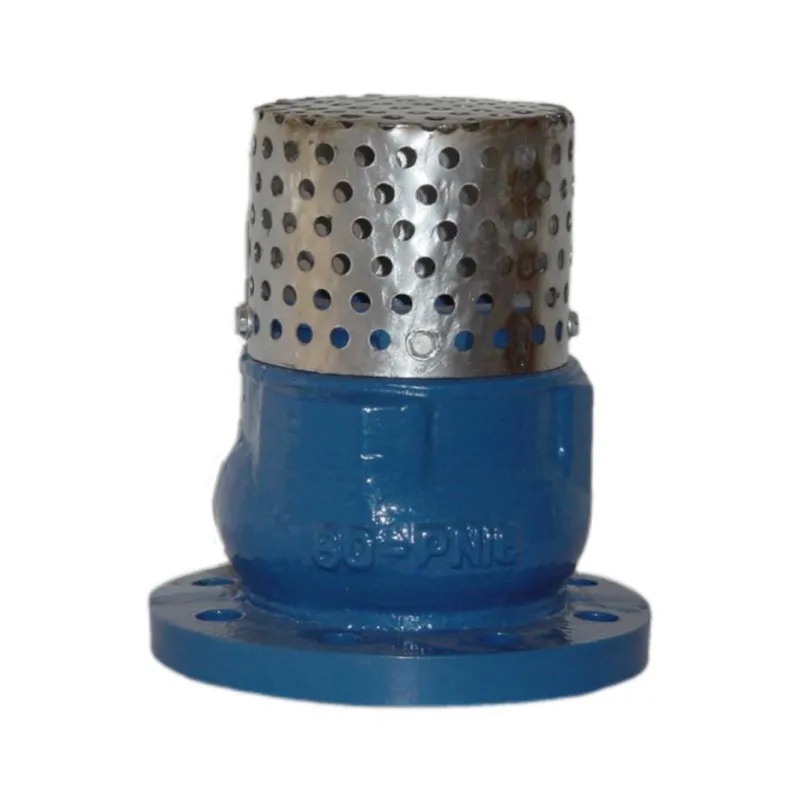

The foot valve with a flanged design is manufactured using high-quality cast iron and ductile iron materials. It is equipped with a stainless steel 304 screen, which ensures enhanced durability and prevents debris from entering the system. This valve is designed to provide efficient and reliable performance in various industrial applications.

Preventing damage to the pump caused by dry operation is essential, and it is equally important to avoid energy waste. Proper measures can be taken to protect the pump and ensure efficient use of energy.

Easy installation is ensured with the self-tapping male and female threads that these products have been designed with. The threads enable a hassle-free fixing process, making it effortless to set them up without requiring any additional tools or advanced skills.

These water pumps have the ability to adapt and be used for different purposes due to their flexibility.

Other valves used to prime a pump are more expensive to use compared to them.

A longer lifespan for the pump can be achieved with the assistance of a foot valve of superior quality.

They are cost-effective and lightweight.

Suction lines of the pipeline

The use of pumps in transferring water is common in ponds, pools, and wells. These sources are significant in providing water for various purposes, including irrigation, drinking, and swimming. Without pumps, getting water from these sources would be challenging, with the need for manual labor and time-consuming processes. Therefore, the use of pumps has simplified the water transfer process, making it faster and more efficient, particularly for larger volumes of water.

Pumps that are designed to handle sewage and feed water are commonly used in bodies of water such as rivers and lakes. These pumps are an important part of the infrastructure that is necessary to ensure that the water in these bodies remains clean and usable. Sewage pumps are used to remove waste products from the water while feed water pumps are used to bring in fresh water from other sources. Both types of pumps are essential for maintaining the quality of the water in these environments and preventing pollution. Without reliable sewage and feed water pumps, the water in these bodies of water could quickly become contaminated and dangerous for human use.

Pneumatic brake lines for commercial trucks

Car wash systems

Irrigation systems

Rural fire protection systems

HVAC systems

Standard materials of parts

DIN PN16 Ductile Iron Flanged Foot Valve
