DIN Standard Flanges
Description
Technical Parameters
In European countries, the specifications for DIN standard flanges dimensions are well-established. DIN, which stands for Deutsches Institut für Normung, sets the standard for products such as flanges and also lays out the procedures and services required. The term PN is commonly used alongside DIN and refers to the Pressure Nominal. This prefix provides information about the pressure rating of the flanges.
Specifications:

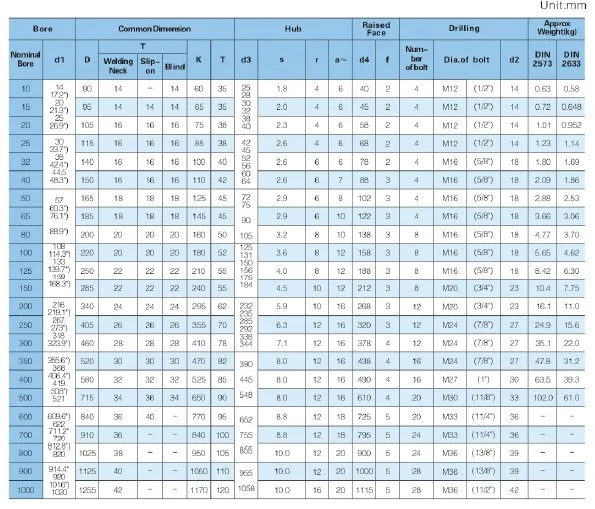

·Size: DN15 to DN2000 or larger
·The pressure ratings available for this product are PN6, PN10, PN16, PN25, PN40, and PN64. These ratings reflect the maximum pressure that the product can withstand safely. The higher the rating, the higher the pressure it can handle. It is important to select the appropriate pressure rating for your specific application to ensure optimal performance and safety.
Our company provides a wide range of flanges made from carbon steel and stainless steel. We offer various types of flanges such as Slip On Flange, Welding Neck Flange, Blind Flange, and Plate Flange. These flanges come with different face types including Raised Face (RF), Ring Type Joint (RTJ), and Flat Face (FF). We take pride in supplying quality flanges that meet industry standards. Whether you need carbon steel or stainless steel flanges, we have got you covered. Choose from our extensive selection of flanges to meet your specific requirements.
We offer a wide variety of forging materials, including carbon steel, alloy steel, and stainless steel. Our selection includes Q235, 16MN, ASTM A105, A350 LF2, A182 F304, F316, F304L, F316L, F317, F321, F347, F904L, A182 F11, F12, F22, F51, F53, F56, F60, F65, and F70. These materials are all forgeable and will provide excellent performance in your applications. Whether you need high strength, corrosion resistance, or both, we have a material that will meet your needs. Choose us for your forging needs and experience the reliability and quality that comes with our materials.
，，：DIN2527，2543，2545，2566，2572，2576，2631，2632，2633，2634，2638。
·If required, we can also supply steel flanges according to other industry standards such as ANSI, BS, JIS, UNI, EN, AS. Additionally, we have the capability to manufacture custom flanges based on customer-provided drawings. Our extensive range of flanges can meet various application requirements. Please let us know your specific needs, and we will deliver high-quality products tailored to your specifications.
There are various DIN standards for flanges, such as PN6, PN10, PN16, PN25, and PN40. These standards determine the pressure rating of the flanges, which in turn indicates the maximum pressure that the flanges can withstand.
For instance, PN6 flanges can withstand a maximum pressure of 6 bar, PN10 flanges can withstand a maximum pressure of 10 bar, PN16 flanges can withstand a maximum pressure of 16 bar, PN25 flanges can withstand a maximum pressure of 25 bar, and PN40 flanges can withstand a maximum pressure of 40 bar.
These standards are critical as they ensure that flanges are designed and manufactured to withstand specific pressure levels. It is essential to use the appropriate flange standard to prevent issues such as leakage, failure, and system shutdowns. So, it is fundamental to choose the appropriate flange standard in any pipe system, and the correct procedure must be followed.
Hot Tags: din standard flanges, China din standard flanges manufacturers, suppliers
