Forged Steel Screwed Pipe Fittings

If you're looking for a reliable and durable fitting for your piping needs, then you might want to consider a forged steel screwed pipe fitting. Forged steel is a type of metal that has been heated and shaped under intense pressure, resulting in a fitting that has outstanding strength and can withstand high levels of pressure as well. These fittings come in a wide range of shapes and sizes, including elbows, tees, couplings, caps, and plugs, and are manufactured to meet strict standards and specifications set by various organizations such as ANSI, MSS, ASTM, and ASME.
The versatility of forged steel fittings makes them ideal for many different types of piping systems, especially those that require fittings to be used in tight or small spaces. With their superior strength and excellent durability, forged steel fittings are built to last and can provide you with the peace of mind and confidence you need when it comes to your piping needs. So whether you're looking for a fitting for your industrial or commercial uses, a forged steel screwed pipe fitting may be a great option for you.

Screwed pipe fittings made from forged steel have threads on both ends, making them ideal for connecting pipelines. The inside of a fitting has female threads, while the outside has male threads that screw into the female ones. When connecting to a pipeline, the fittings are inserted into the threaded pipe end and securely fastened. This design ensures that the connection is sturdy and can withstand the pressure of the material being transported.

·Size: 1/4” to 4” (DN10 to DN100)

·Pressure Rating: 2000LB, 3000LB, 6000LB

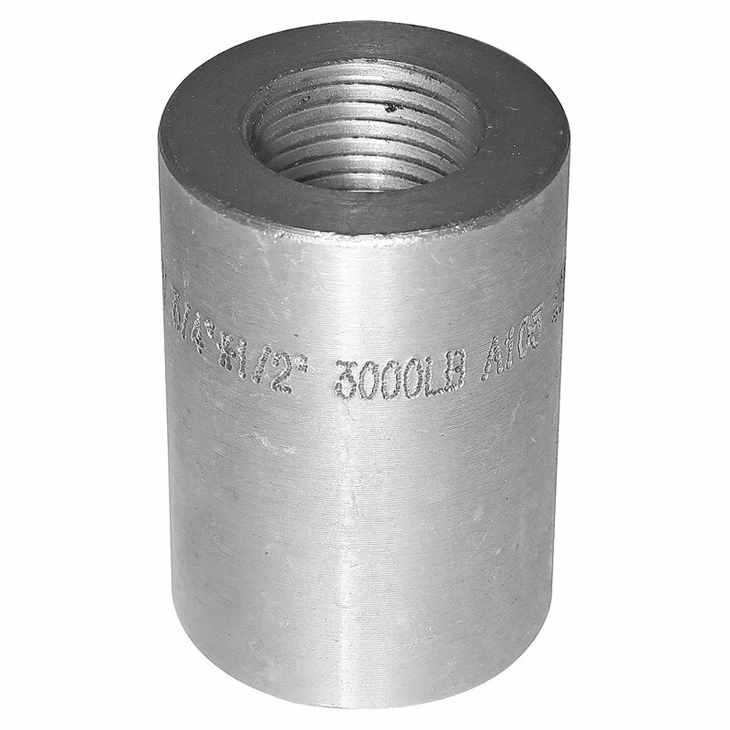

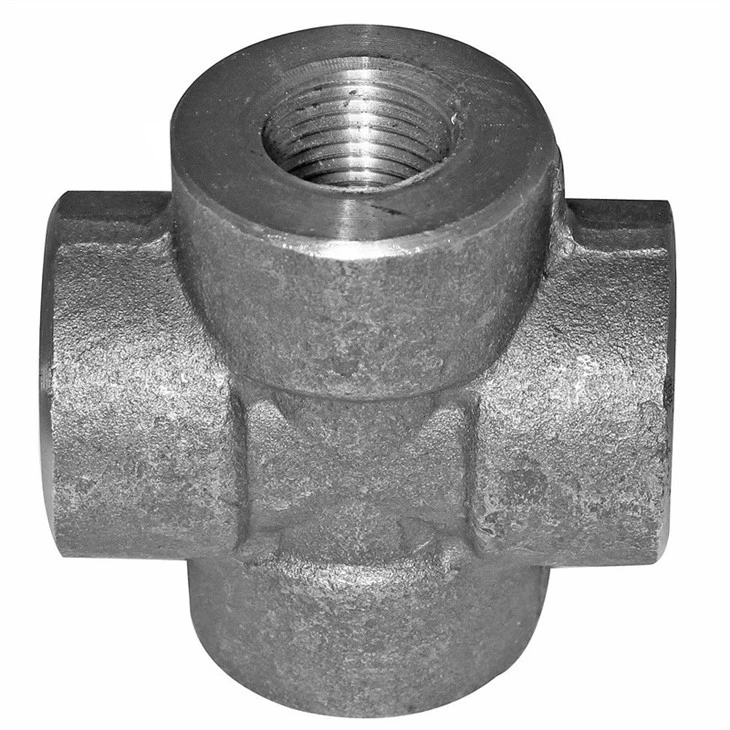

We offer a wide variety of high pressure forged steel screwed fittings that come in different shapes such as 45 degree elbows, 90 degree elbows, equal tees, reducing tees, concentric reducers, eccentric reducers, unions, crosses, couplings, half couplings, full couplings, round caps, hexagon caps, hexagon bushes, hexagon plugs, round plugs, square plugs, swage nipples, concentric swage nipples, eccentric swage nipples, welding bosses, hexagon nipples, weldolets, sockolets, threadolets, latrolets, nipolets and more. Our fittings are of top-quality standards, ensuring that they perform effectively even under high pressure environments. Choose from our vast selection of fittings to find the right one for your specific application needs.

·Forged carbon steel (or galvanized), forged stainless steel, and forged alloy steel are some of the materials used in the manufacturing process. These materials include ASTM A105, A350 LF2, A182 F304, F316, F304L, F316L, A182 F11, and F22. The use of these materials ensures the strength and durability of the products.

The following industry standards are applicable for pipeline fittings and valves: ASME B16.11, MSS SP 97, MSS SP 95, and ASME B36.10. These standards provide guidelines and specifications for the design, manufacturing, and testing of these components. Adherence to these standards ensures that the fittings and valves meet the required quality and performance criteria. The ASME B16.11 standard focuses on forged fittings, specifying dimensions, material requirements, and marking for different classes and pressure ratings. MSS SP 97 and MSS SP 95 standards cover integrally reinforced branch outlet fittings, providing guidance on dimensions, materials, and testing procedures. Lastly, the ASME B36.10 standard specifies the standard sizes, wall thicknesses, and weights for seamless and welded carbon steel pipes. Overall, compliance with these standards is essential to ensure the safety and reliability of pipeline systems.
