Cast Steel Basket Strainer

Basket strainersBasket filters are versatile filtration tools that are capable of handling a wide range of liquids and effectively capturing various sizes of solid particles. With the added convenience of easy-to-clean baskets, these filters offer a practical solution for many applications. Depending on specific requirements, basket filters are available in different configurations such as single cylinder, double cylinder, multi-cylinder, and pleated styles. They consist of a filter housing, perforated cage supported filter elements, and a reliable positive seal system to ensure zero bypass and enable flexible end joining options. The name "basket" aptly describes the shape of these filters.

Basket strainers are an excellent choice for eliminating solid particles and other contaminants from various fluids and gases, helping to prevent blockages and harm to downstream systems.

Basket strainers are designed in such a way that they do not cause a substantial decrease in the pressure of the fluid or gas flowing through the system. This implies that basket strainers have a minimal impact on the pressure drop experienced by the fluid or gas within the system.

A removable basket is typically used as the straining element in a basket strainer, allowing for easy maintenance and cleaning.

Basket strainers have a multitude of applications across various industries such as water treatment plants, chemical processing plants, oil and gas industry, and HVAC systems. These strainers act as filters, removing unwanted particles and debris from fluids. Due to their versatility, they are commonly used to ensure the smooth running of systems, improve the quality of fluids and protect equipment from damage. Whether it's removing contaminants from water sources or maintaining the purity of chemicals, basket strainers are a reliable solution.

1.Design and manufacture: ANSI B16.34

2.Test and inspection: API598

3.Face to face dimensions: ANSI B16.10

4.Flanged end: ANSI B16.5

5.Butt-welding end: ANSI B16.25

We can also provide other standards (DIN, BS, JIS) upon request. If you require any of these standards, we can accommodate your needs and ensure that the products adhere to the specifications outlined in the requested standard. Just let us know your preference, and we will make sure to meet your requirements accordingly.

·Size: 2” to 36”

·Class: 150LB to 600LB

Looking for reliable and high-quality strainers for industrial use? Look no further than our extensive range of strainers, which come in a variety of configurations to suit your specific needs. Choose from single or duplex bucket strainers, Y strainers, or T strainers, all of which are available as cast or welded, bolted bonnet strainers with stainless steel screens. We offer custom wire screen mesh or perforated screen hole dimensions to ensure your strainer meets your exact requirements. Trust in our products for effective and efficient filtration in your industrial processes.

Our materials range from WCB, WCC, WC6, WC9 to CF8, CF8M, CF3, CF3M, CN7M, LCB, LCC, Duplex stainless steel, Hastelloy, and Alloy 20. Each material is carefully selected for its unique properties and suitability for different applications. We pride ourselves on our diverse material portfolio, ensuring our customers have access to a wide variety of options that suit their specific needs. Rest assured that we only use high-quality materials that are robust and reliable, giving you peace of mind in every use. Choose our materials for the perfect combination of strength, durability and performance.

Standard materials of parts

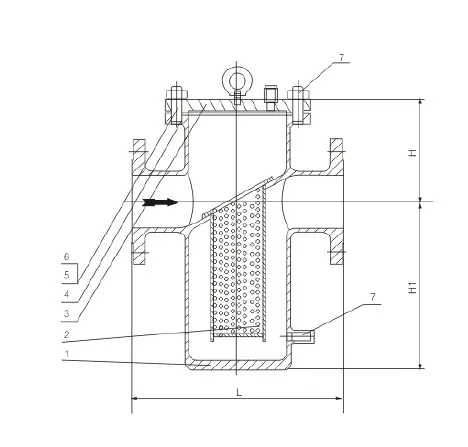

Dimensions (in mm & inch) Class150/300/600
